產品概述
The KY32xx series devices are EIA/TIA-232 and V.28/V.24 communication interfaces achieve 1μA supply current with KEYSEMI’s revolutionary POWERSAVE™ feature. A proprietary, high- efficiency, dual charge-pumpregulated voltage converters and a low-dropout transmitter combine to deliver true RS-232 performance from a single +3.0V to +5.5V supply.
These devices can operate from input voltages ranging from +3.0V to +5.5V at the guaranteed data rate of 250k bits/sec with enhanced electrostatic discharge (ESD) protection in all RS232 I/O pins exceeding ±15kV EN61000-4-2 Air Gap Discharge and ±8kV EN61000-4-2 Contact Discharge.
特性
應用
器件信息
簡化通道結構圖
? Meets EIA/TIA-232F and CCITT V.28/V.24specifications for VCC at +3.3V ±10% and +5V ±10%
? Low POWERSAVE Current:1μA typical, 10μA max
? Guaranteed Data Rate 250kbps
? Extended ESD Protection for RS-232 I/O Pins ±15kV HBM
? High Data Rate at 1000kbps Available on KY32xxF Series
? Battery-Powered And Hand-Held Applications
? Peripherals interface
? Portable Diagnostics Equipment
? Terminal Adapters and POS terminals
? Notebooks, Subnotebooks, and Palmtops
? Industrial and Embedded PCs
產品型號 封裝
KY3232LEEN NSOIC-16
KY3232LEEA SSOP-16
KY3232LEEY TSSOP-16

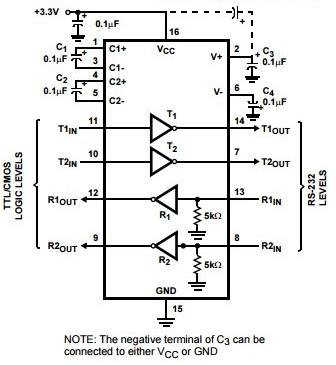

                        Typical Application Circuits
